Press Brakes Features

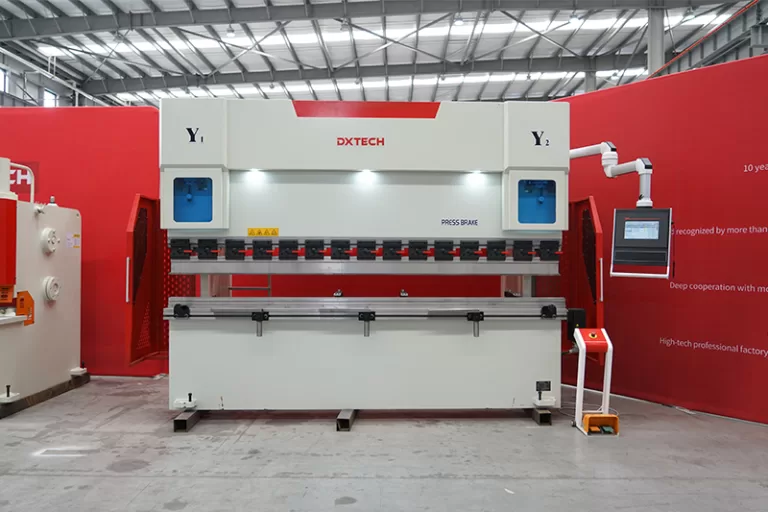

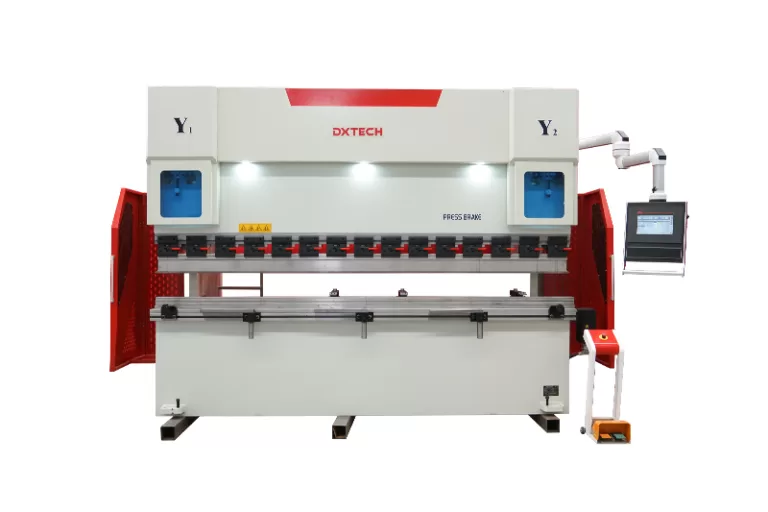

1.The machine is advanced. The two oil cylinders are fixed on the left and right wallboards. The stress state of the whole machine is reasonable and the rigidity is sufficient.
2.The electro-hydraulic servo synchronization mode is adopted to ensure the synchronization of the oil cylinder, with good synchronization performance, strong anti bias load capacity and simple debugging. The stroke Y1 and Y2 of the two oil cylinders are controlled by a single controller, and two grating rulers are equipped to detect the displacement of the slider. The positioning accuracy can reach 0.02mm, and the repeated positioning accuracy is 0.02mm.

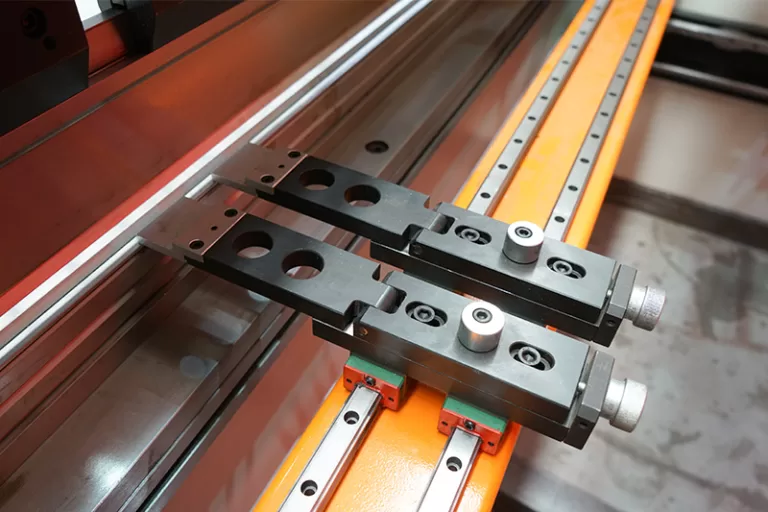

3.The rear material is controlled by numerical control.
4.All hydraulic valve groups of the product are bosch- rexroth special valve groups matched with numerical control, the oil cylinder seals are Japanese NOK products, the grating ruler is German Heidenhain products, and the main electrical components are imported components.
Technical Parameters
| Model | 125T/3200mm |
| CNC System | ESA S630 |
| Nominal Force | 1250kN |
| Table Length | 3200mm |
| Distance Between Columns | 1560mm |
| Throat Depth | 350mm |
| Slider Stroke | 200mm |
| Opening Height | 460mm |
| Oil Pump | 16F |
| Main Motor Power | 7.5KW |
| Control Accuracy | ±0.01mm |
| Number Of Control Axes | 3 Axes (Y1, Y2) |
| Electrical Components | Schneider |
Application

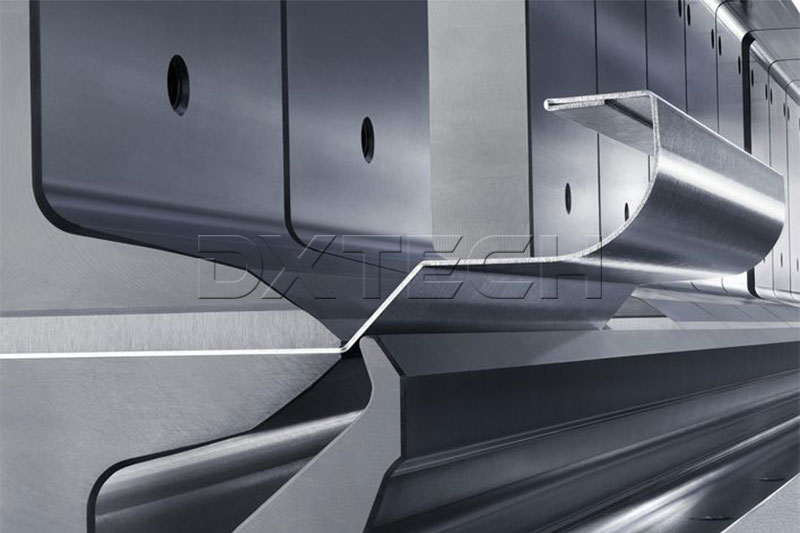

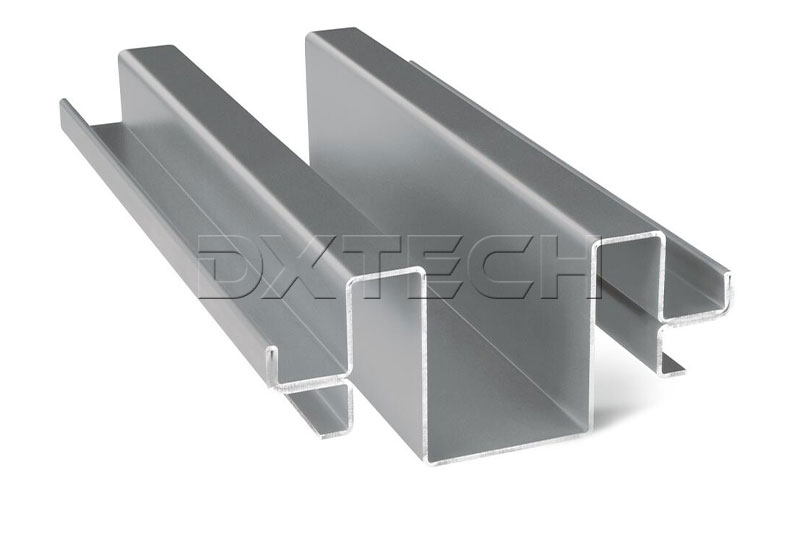

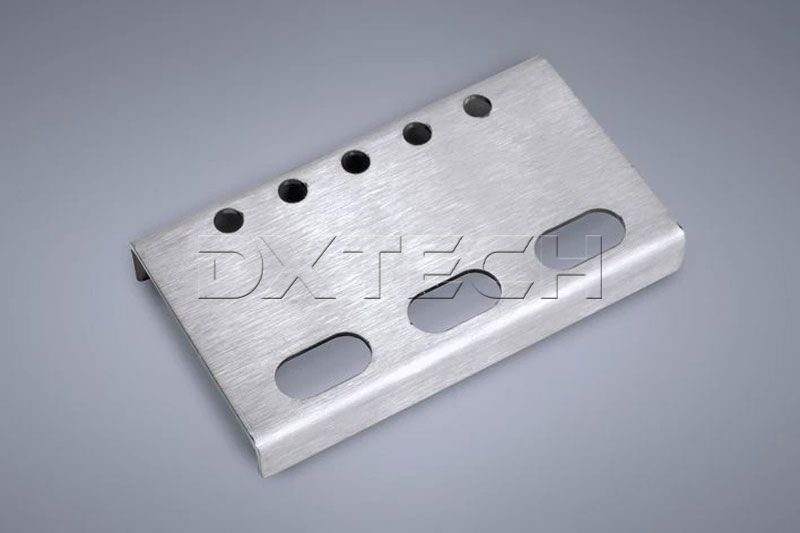

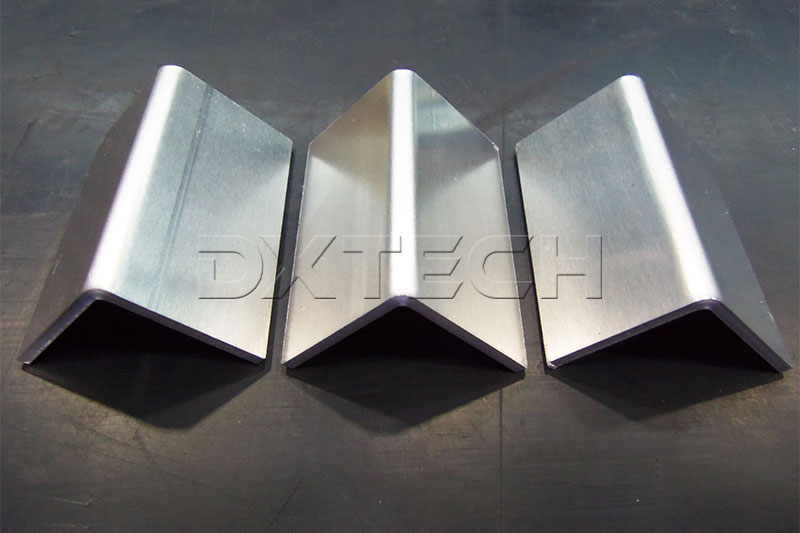

It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
